How Rotary Table Blast Machines Ensure Consistent Surface Cleaning

Rotary table shot blasting machine is designed to process workpieces of various shapes and dimensions, castings, forgings, pressed parts, parts made of steel or non-ferrous metals, and parts of fragile materials.

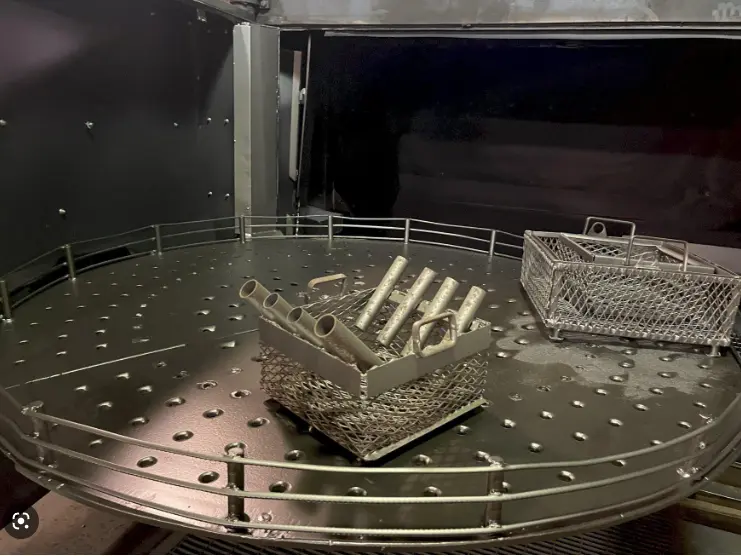

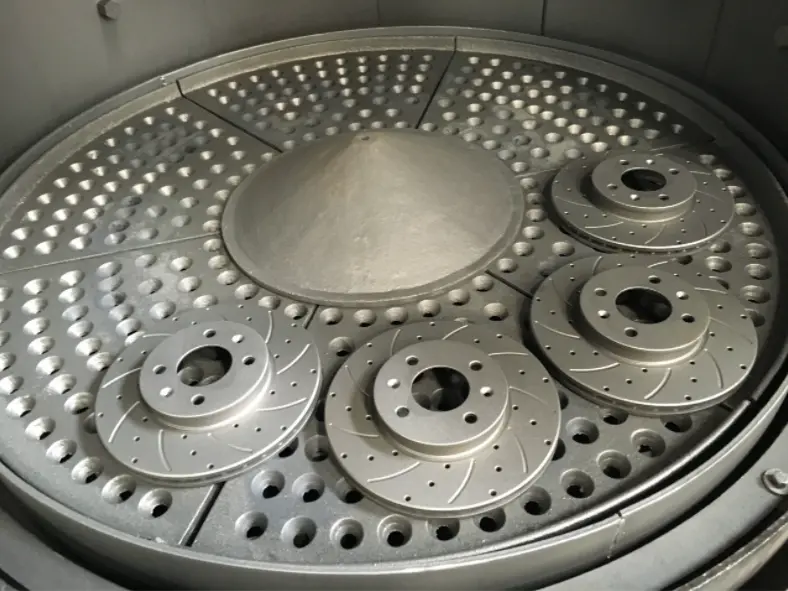

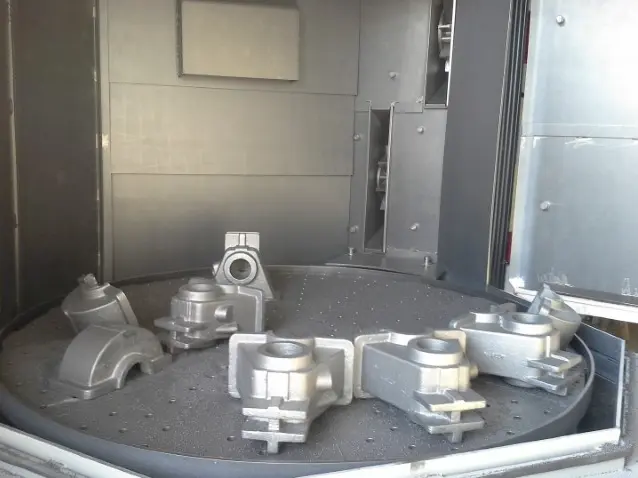

The applications of Rotary table blast machines are mainly for targeted blast cleaning of single/multiple workpieces producing repeatable cleaning results. Placed workpieces on the slowly rotating table, the workpieces are exposed to blast stream from the turbine(s) located on the wall & ceiling of the machine housing.The shot blast process can occur in single batch mode or indexing with multiple batches placed on the rotary table. Depending on the processing mode, the table is open over 360 degrees or divided into different segments. The layouts of the blast wheels on the table-type blasting machine are mainly according to the features of the parts.

The rotary table shot blasting machine offers complete flexibility for your shot blasting operations. Whether you are cleaning welded structures and manufacturing, cleaning and removing castings, or shot peening and strengthening dynamic stress components, the rotary table shot peening machine can help reduce the required production time.

product details

Applications

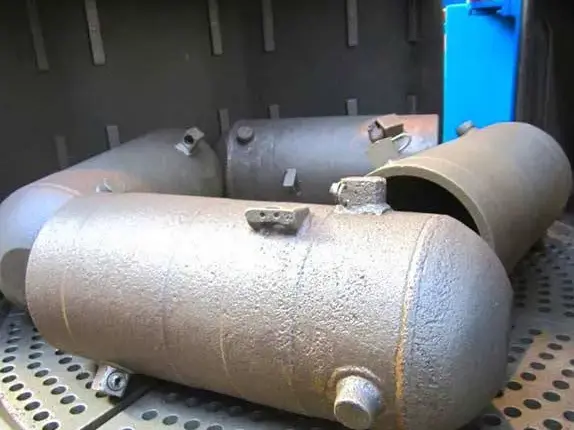

Rotary table shot blasting machine is suitable for small and medium-sized casting, forging, welding parts, flat thin wall collision parts of the surface cleaning, especially suitable for gear, shaft, spring, tie rod sintered parts surface strengthening treatment. Such as forged or heat treated parts, ferrous and non-ferrous metal castings, ferrous and non-ferrous metal castings, die cast parts, etc.

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (6)s3m

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (7)j1l

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (8)m50

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (9)e6z

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (10)2xr

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (11)10b

Rotary Table Shot Blasting Machine Table type blasting machine Automatic with a rotary table (12)tfv

01020304050607

Technical Specification

Item	Q3512	Q3525	Q365C	Q3610	Q3620
Size of workpiece(mm)	600250250	1000500250	2500*1300	25001500280	40003000700
Max weight of piece(kg)	400	1000	5000	10000	20000
Capacity of shot blasting(kg/min)	200	2*250	2*250	4*250	4*250
Lifting capacity of hoist(t/h)	15	30	40	60	75
Separating capacity of separator(t/h)	15	30	40	60	75
Ventilation capacity(m³/h)	2400	6200	13200	24000	21000
Power (exclude dust collector) (kw)	17.3	35.2	39.2	188.45	185.25
